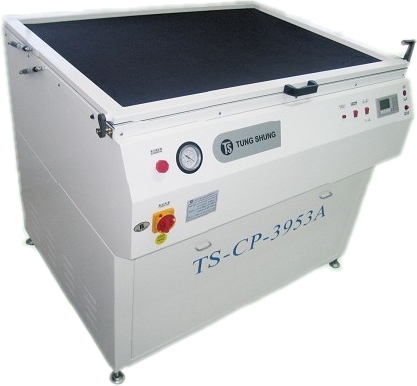

Equipped with Philips HPA 1000/20 preheated UV lamp, 400/1000W, with standard wavelength of 365nm, Steady light source, easy to operate, low-cost and high-quality.Suitable for exposing daylight film to be used in making printing plates. Short exposure time, good darkening, few stains or pinholes.
|
型號Model |
CP-3684A |
CP-3953A |
CP-4860A |
|
Glass Dimensions 玻璃尺寸 |
122× |
135× |
135× |
|
Exposure Area 曝光面積 |
100× |
116× |
120× |
|
Standard Light Source標準光源 |
1000W保溫型紫外線光源 標準波長365nm |
||
|
Power Source 電源要求 |
單相220V |
||
|
Equipment Dimensions機器尺寸（L×W×H） |
128×100×110 |
140×110×110 |
158×130×124 |
|
Shipping Dimension 包裝尺寸（L×W×H） |
145×122×142 |
160×136×149 |
175×170×155 |
