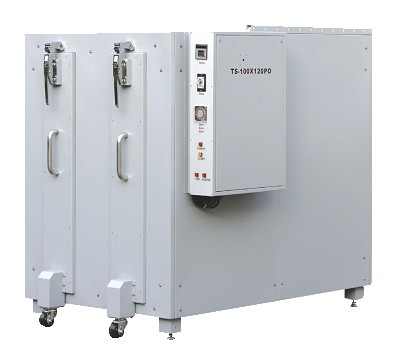

名稱:Plate Oven
型號:TS-100*120PO/TS-135*170PO
主要特點:

基本配置:

應用領域:

       -          Specially designed to increase the PS conventional or CTP Thermal or CTP Photopolymer plate’s

               productivity especially in large volume printing in press industry.

-          Designed with high standard temperature control and good heat insulation.

-          Good hot air ventilation provides even temperature in the oven.

-          Suitable for all type printing plates.

-          Each oven has 2 doors with each door can bake up to 4 plates.

-          Accurate timing alarm ensures the good quality of plates.

Specification:



Model

100 x 120 PO

135 X 170 PO

Max. Plate Dimensions ( cm )

100 x 120

135 x 170

No. Of Cabinet

2

2

Max. No. Of Plates

8

8

Temperature Control Specification

50?C ~ 250?C

Power Supply

3 phase  415VAC  30Amps  50/60Hz

Power Consumption

13.2 KW

Machine Net Weight

475kgs

590kgs

Machine Gross Weight

680kgs

835kgs

Packing Dimensions (cm) (LxWxH)

225x145x183

270x150x218

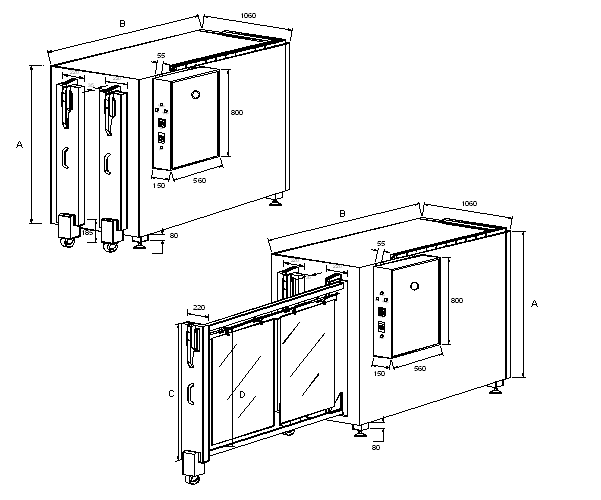

  Machine Dimension (mm):



        號

A

B

C

D

100×120PO

1410

1650

1240

1100

135×170PO

1910

2175

1590

1450
